Input Voltage
180V - 240V AC
Contact Rating
Up to 20A (Direct)
Sensor Support
Stainless Steel Probes
Enclosure
ABS Dust-Proof IP54
Detailed Specifications
| Parameter | Specification Value |
|---|---|
| Microcontroller Core | 8-bit RISC core with low-noise EMI shielding |
| Surge Tolerances | Up to 4kV (internal MOV clamp) |
| Relay Configurations | Single Pole Double Throw (SPDT), 20A dry contacts |
| Terminal Type | Heavy-duty screw blocks (up to 4 sq. mm wire) |
| Operational Temp | -10°C to +60°C |
Live & Shipping

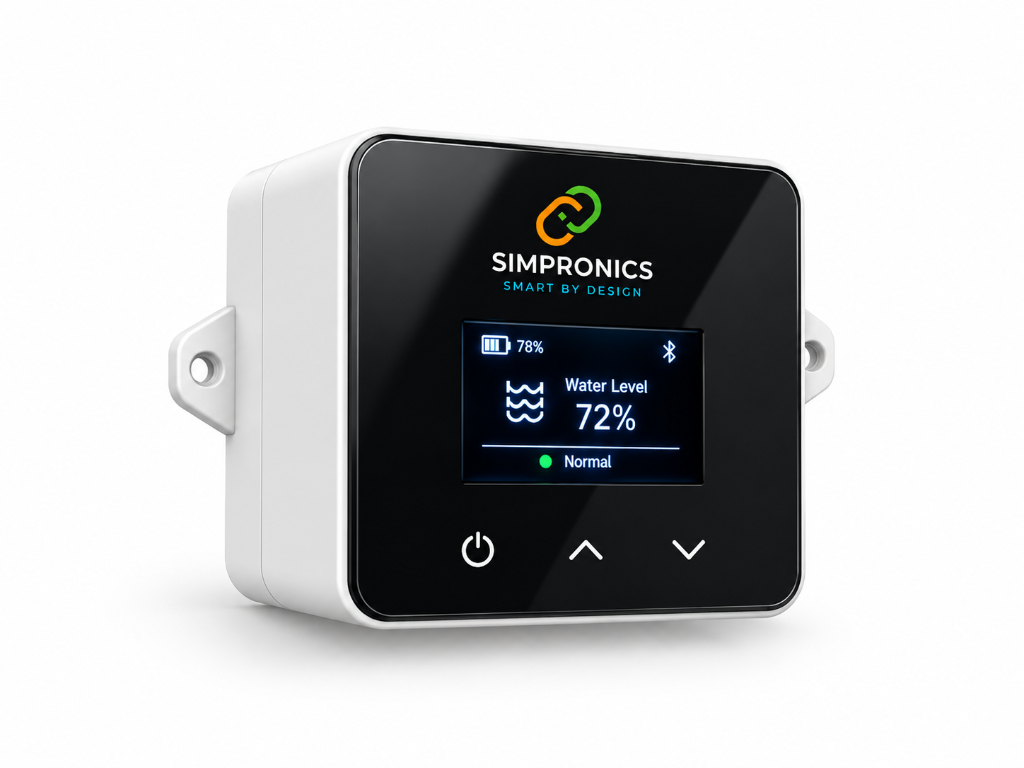

HydroSense Water Level Controller
₹2,499
₹3,499
28% OFF
The Simpronics HydroSense is a microcontrolled smart level controller designed to automatically regulate water pumps for residential, commercial, and agricultural tanks. It monitors overhead and underground tanks concurrently, protecting pumps from burnout and preventing water overflow.
Core Features
- Dual-Tank Monitoring: Independently monitors levels of both the source well (sump) and destination tank.
- Dry-Run Protection: Auto-shuts off the motor if no water flow is detected, preventing pump overheating.
- Corrosion-Free Sensors: Employs low-voltage AC sensing circuits to prevent electrolysis and maximize probe longevity.
- Surge Protection: Built-in metal oxide varistor (MOV) shields the internal microchips from voltage fluctuations.
Purchase HydroSense Controller
Get instant dispatch with free shipping on orders above ₹5,000. Full installation manuals and detailed wire routing layouts included.
Need custom relay setups or bulk discounts? Inquire here
